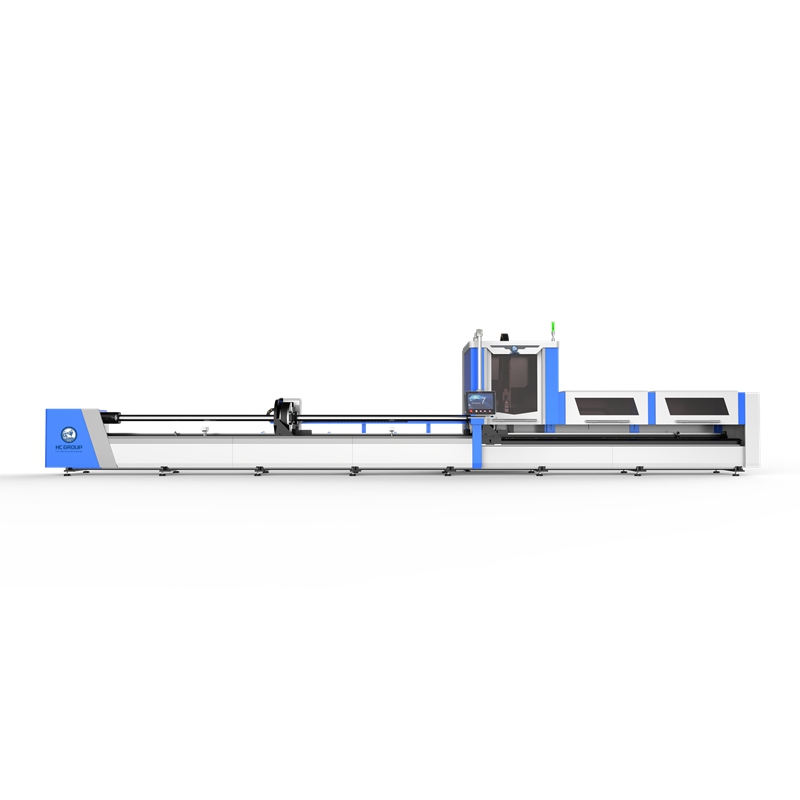

G22X-E Three Chucks Zero Tail Laser Pipe Cutting Machine

G22X-E 3+1 composite chuck zero tailing laser pipe cutting machine adopts the clamping design of front and rear pneumatic chucks, which can automatically adjust the center and process various special-shaped pipes; Zero tailing cutting makes the material cost lower. Multi-chuck linkage can ensure high precision, high speed and low loss of pipe cutting.

Availability:

Quantity:



Inquire Add to Basket

Fiber laser cutter Laser cutting machine Laser welding machine Tube laser cutting machine automatic system

Product Description

3+1 Composite Chuck Technology

Realize "0" tail material, fast speed and high precision

The third chuck is a bilateral chuck design

Unilateral clamping mechanism and unilateral roller mechanism can improve material utilization and save costs.

Professional Pneumatic Chuck

Chuck speed 120r/min

Fully sealed chuck design for small inertia, heavy-duty design and heavy bearing

Intelligent clamping stabilization system

Better dynamic performance and faster response

The pipe is not easy to be scratched during the turning process, stabilizes the pipe, avoids shaking, and improves the accuracy.

Heavy-Duty Three-Chuck Side Mount

The side loading and unloading is more convenient and safe, which can solve the loading and unloading problems of large pipe fittings such as I-beams.

Equipped with two sets of feeding auxiliary components to facilitate pipe feeding.

The equipment has a built-in segmented material receiving rack, which can effectively support the pipe and improve the cutting accuracy. The longest pipe can be down to 3.5m.

Special cutting head for pipe cutting

The 200 telephoto professional model can easily cut I-beam and other profiles.

Specifications

Model	G22X-E
Laser Power	3000W-6000W
Pipe Processing Range	φ10-220mm / □10-150mm U-Steel5#-16# / I-Beam10#-16# Angle Iron30-100
Tail Length	0
Pipe Processing Length	6500mm
Angular Acceleration	100rad/S2
Wall Thickness	0.8-10mm
Max.Chuck Speed	120r/min
Max Single Tube Loading Weight	230KG
System	FSCUT5000A
Servo	YASKAWA
Machine Weight	≈8885KG
Overall Dimensions (L×W×H)	13200×2300×2700mm
