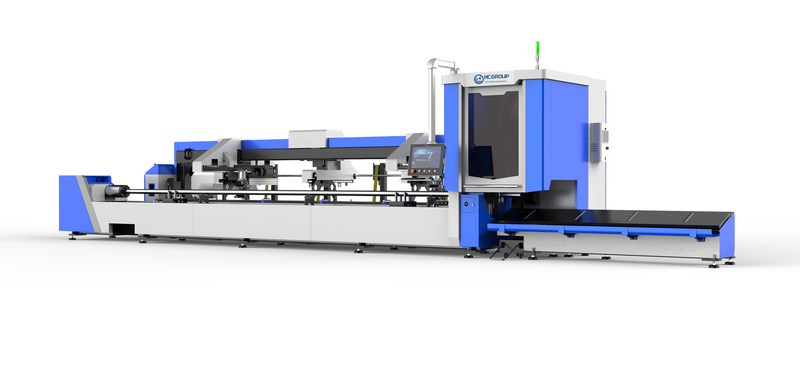

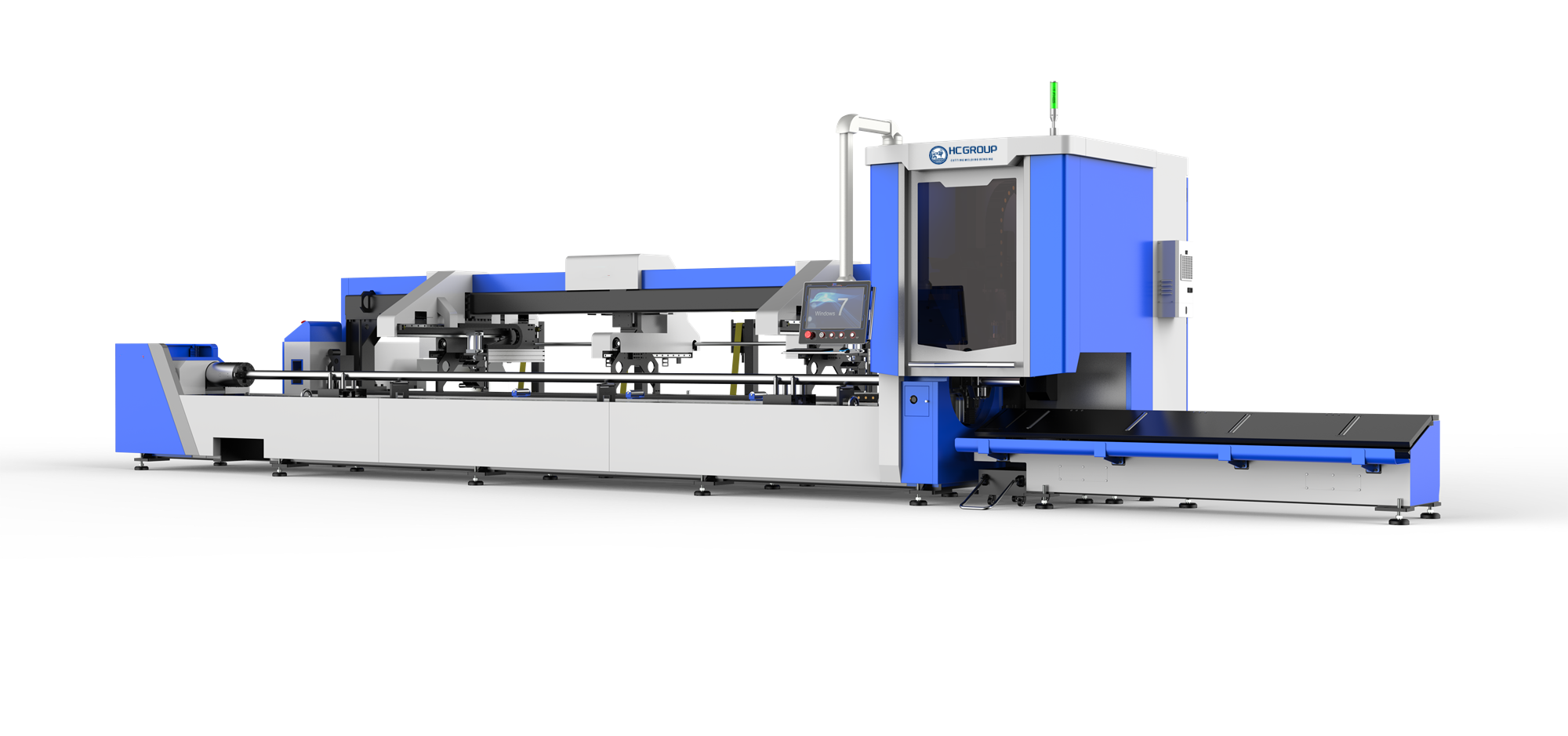

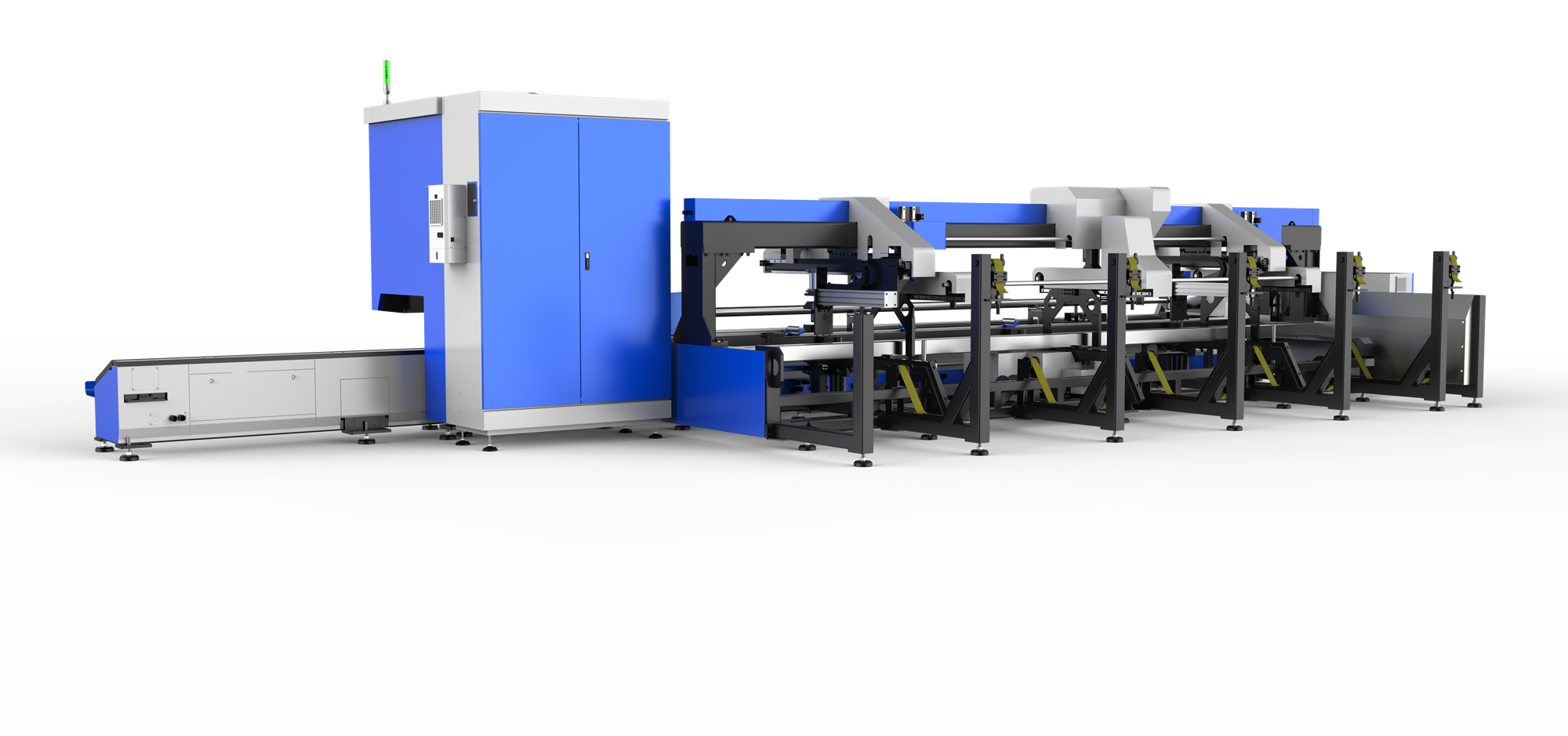

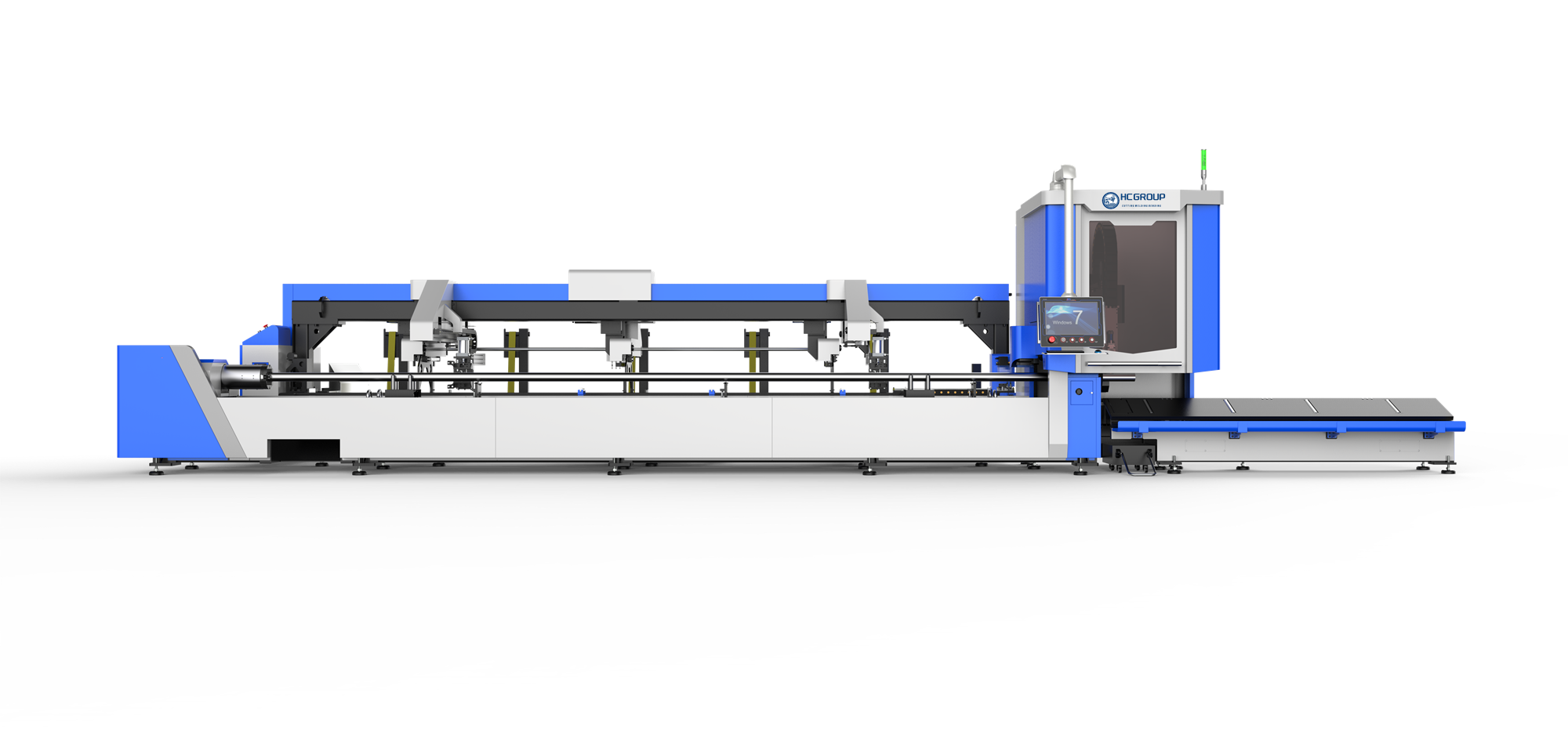

HT22X All-round Laser Pipe Cutting Machine

Universal all-round pipe cutting

The speed is as fast as 107r/min

Cutting range: channel steel 5#-16#/I-beam 10#-16#, angle iron 30-100

The load-bearing capacity of a single tube can reach 205KG.

Yaskawa Servo Motor

High control precision, high dimensional precision of cutting products, and small error.

Intelligent control system

High performance, high efficiency and high precision;

Multi-function such as real-time centering compensation, rotation center correction, and PLC process editing freely, which can meet the cutting action requirements of different scenarios;

Comes with intelligent nesting software to reduce production costs.

Servo follow-up support

Reduce pipe flutter and improve pipe cutting accuracy;

With follow-up clamping centering function, it prevents pipe from swinging left and right,

Improve the linearity of pipe fittings to ensure high-precision machining.

Full stroke professional pneumatic chuck

Fully sealed chuck design for small inertia, high speed and high processing efficiency;

The rear chuck is equipped with an air blowing function, which can effectively protect the chuck, and prevent dust and dust from falling into the jaws, causing malfunctions.
